Garage Door Hardware Configurations
The bulk of our garage door hinge options will depend on the configuration of your chosen garage door selection:
Single Garage Door
Single Garage Door Specs
Available Widths
Hardware Recommendations
Track Sizes
Single Garage Door Specs

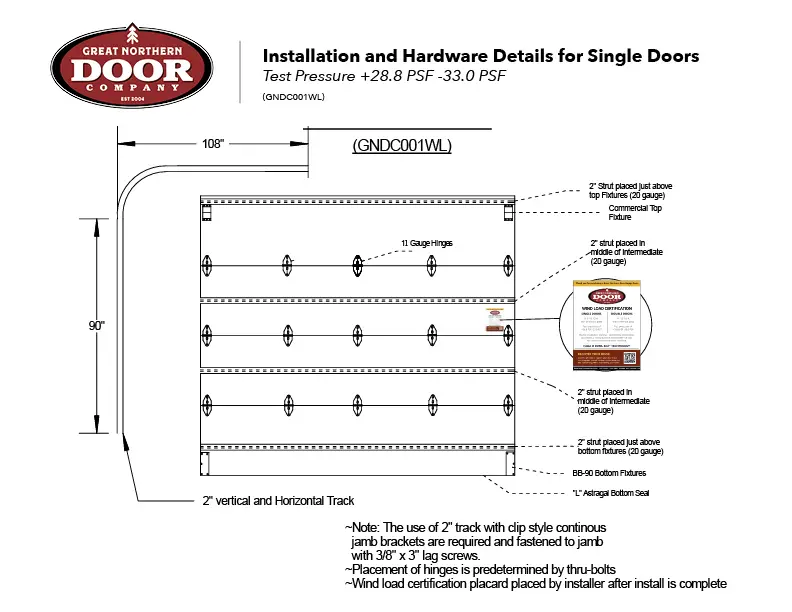

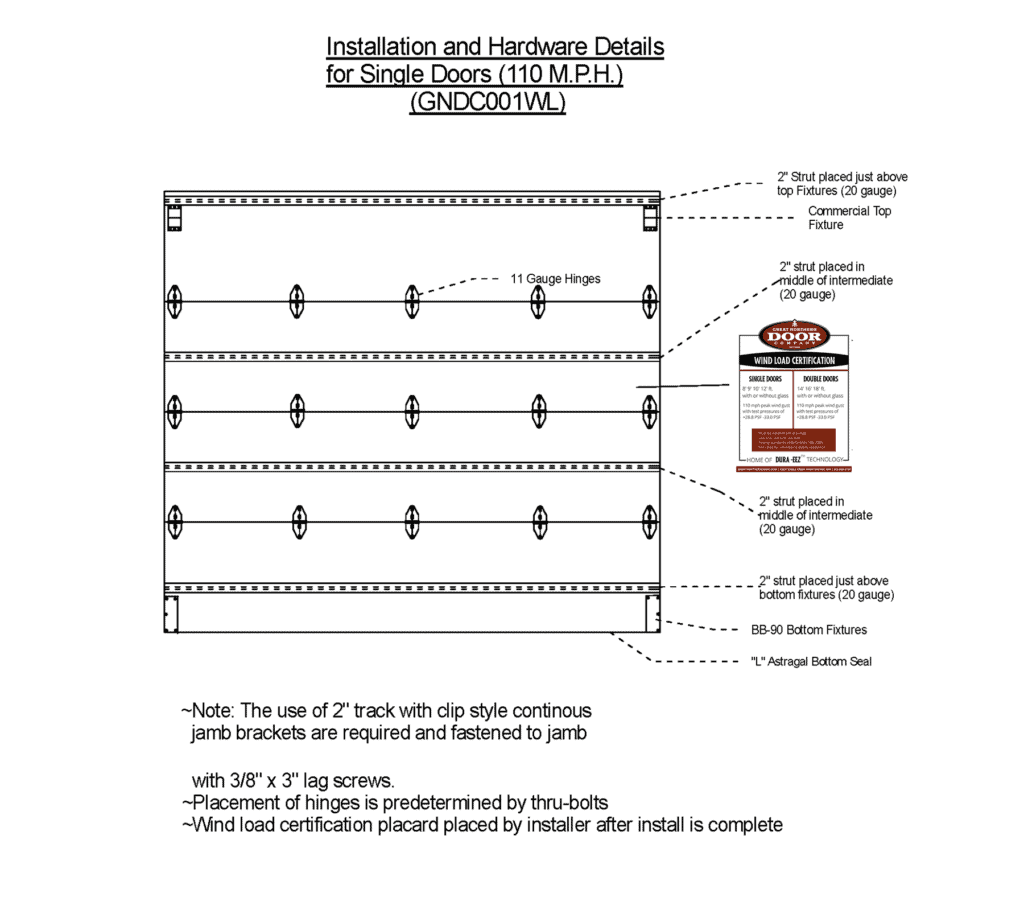

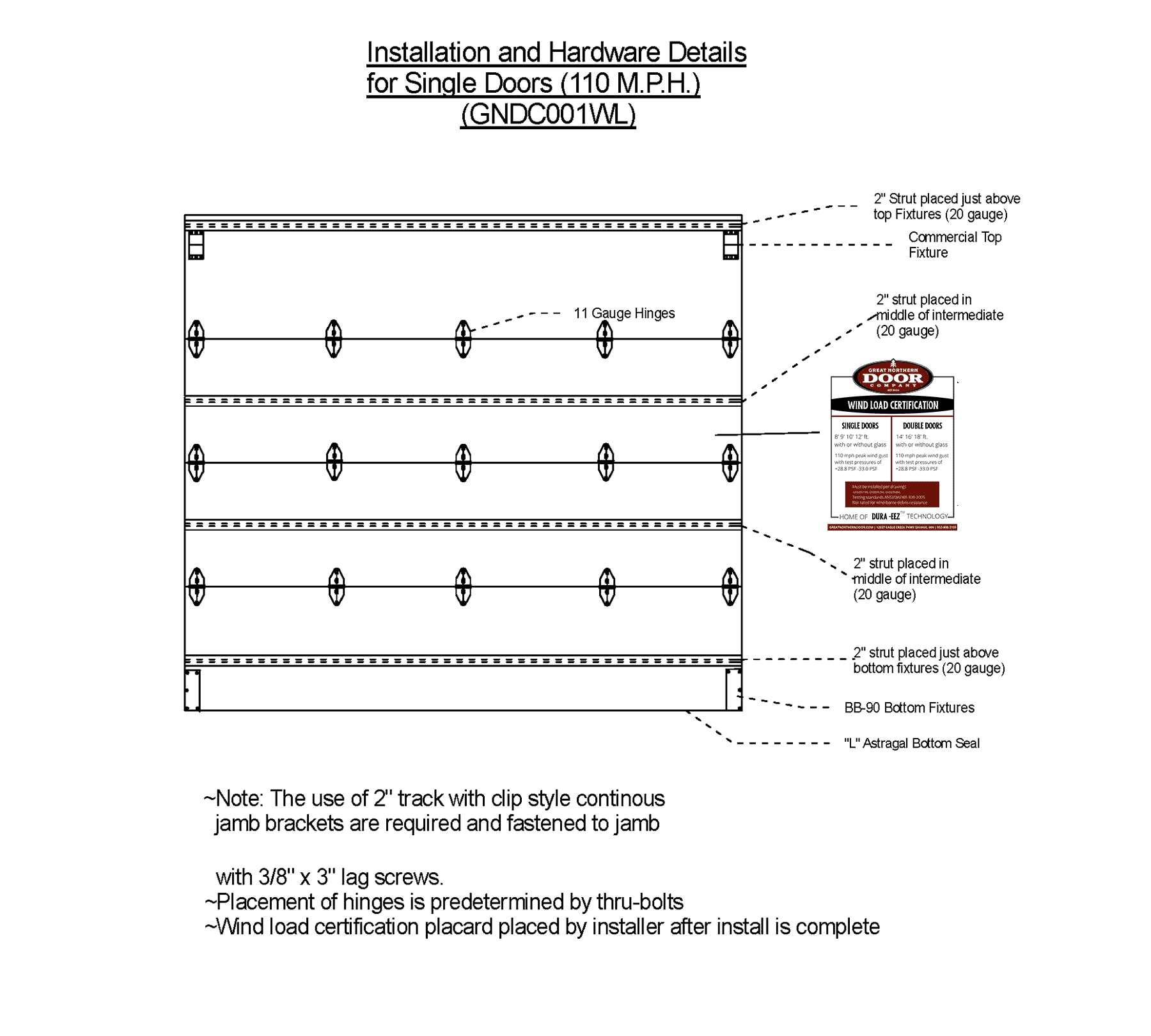

4 panel door rated to withstand 110 MPH wind load. See detail illustration below.
Available Widths
8′, 9′ 10′, 12′ width
Hardware Recommendations
- Hinges – 11 Gauge
- Struts – 2″ – 22 Gauge – one strut per section (4 per door)
- Shaft – Hollow – 14 Gauge
- Torsion Springs (2 per door)
- Drums – 400-8 (Typically)
- Bottom Seal – Aluminum bottom retainer with seal
*1/4-20 serrated hinge bolts are provided with all door sections
Track Sizes
Available in 2″, 12″ or 15″ radius with a 2″ x 2″ horizontal angle stiffener.
Double back hang at installation, clip style reverse angle vertical track.
Double Garage Door
Double Garage Door Specs
Available Widths
Hardware Recommendations
Track Sizes
Double Garage Door Specs

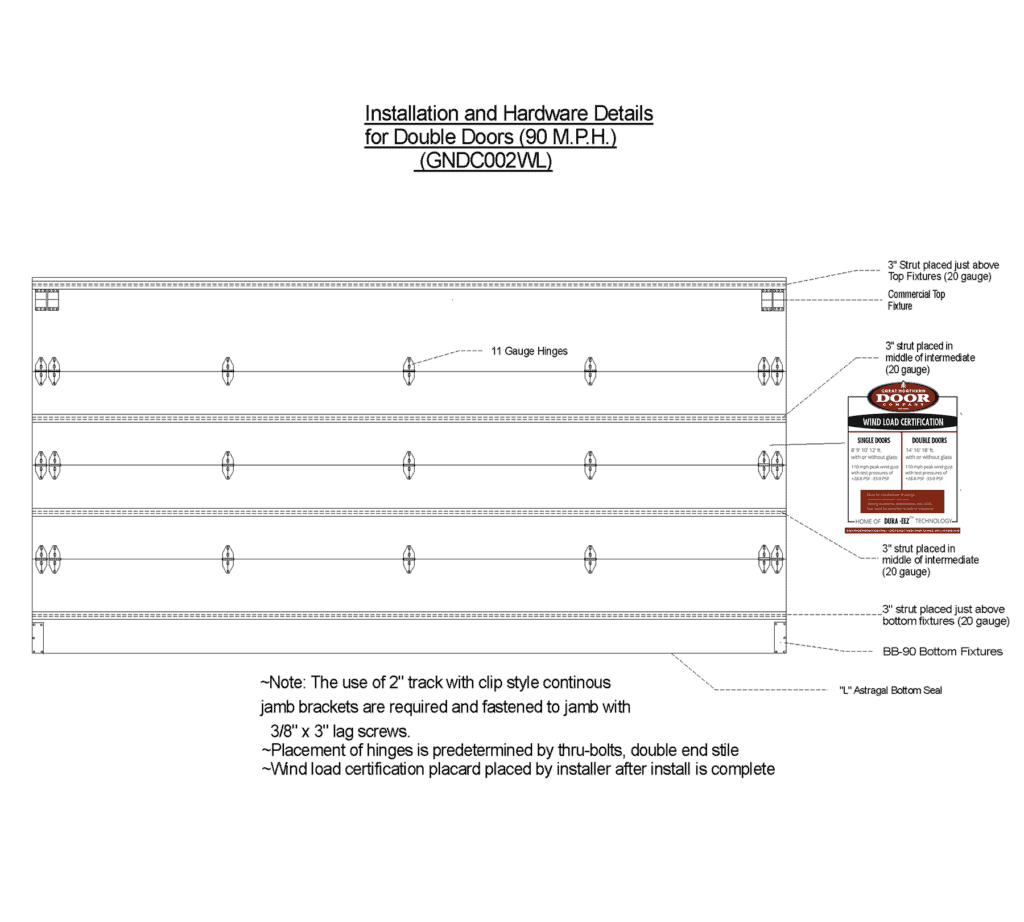

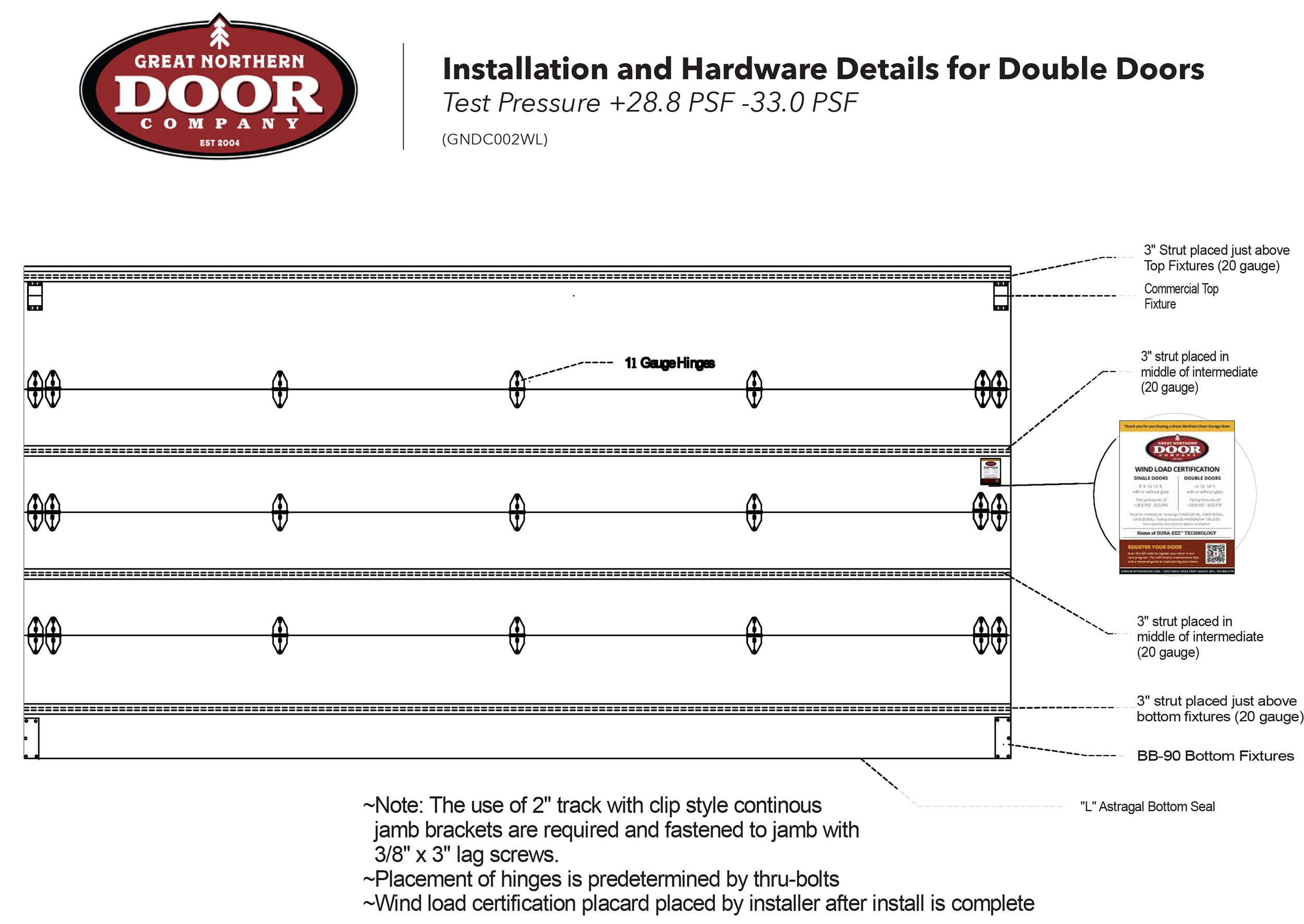

4 panel door rated to withstand 90 MPH wind load. See detail illustration below
Available Widths
Available in 14′, 16′, 18′ Width
Hardware Recommendations
- Hinges – 11 Gauge
- Struts – 2″ – 20 Gauge – one strut per section (4 per door, or 6 per 110 mph wind rated)
- Shaft – Keyed Split Solid Shaft
- Torsion Springs (4 per door, recommended)
- Drums – 400-12 (Typically, but will vary on final door weight and springs)
- Bottom Seal – Aluminum bottom retainer with seal
*1/4-20 serrated hinge bolts are provided with all door sections
Track Sizes
Available in 3″ commercial grade, 15″ radius
GARAGE DOOR OPERATORS
There are many options when it comes to garage door openers, however due to the heavy-duty construction and weight of our doors, we recommend using a 3/4 HP, or higher, operator such as the LiftMaster 8587WL.
- Durable chain drive for long-term reliability
- 3/4 HP AC motor lifts heavy and reinforced doors, even in high winds
- I-Beam rail system provides maximum support
